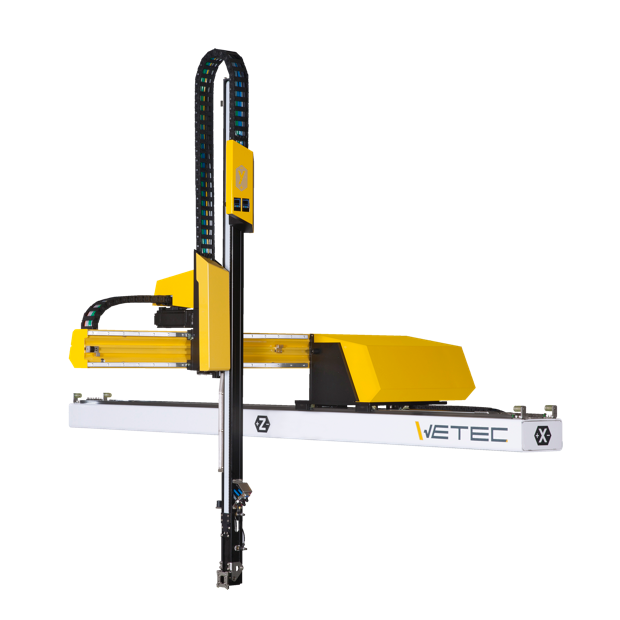

W6 Series – Linear Robot
Light but Strong
Flexible
- Modularized design for a wide range of applications.
- Standard Euromap interface for perfect integration with any injection moulding machine.
- Telescopic vertical arm or single stage on request.
- Single vertical arm for standard workflow or double for three plate mould.
- Custom gripper designs on request.
- External I/O modules for peripheral equipment.
Efficient
- All three axes are equipped with powerful servo drivers and precision linear guides.
- Lightweight design for energy efficiency and vibration control.
Stability
- Traverse beam is constructed with steel which provides high rigidity.
Compact
- Integrated control cabinet is mounted behind horizontal axis which saves valuable space in the factory.
- Very simple structure for easy maintenance.
| 型號 | 橫移行程 - Z軸(mm) | 垂直行程 - Y軸(mm) | 前後行程 - X軸(mm) | 前後最遠可達位置 | 荷重(含零件+治具) (kg) | 適用射出機噸數(t) |
|---|---|---|---|---|---|---|
| W6306 | 900 | 600 | 420 | 526 | 6 | 30 - 100 |
| W6309 | 1500 | 900 | 660 | 766 | 6 | 150 - 300 |
| W6312 | 1800 | 1200 | 720 | 826 | 6 | 250 - 350 |
| W6209 | 1500 | 900 | X: 490, X1: 300 | X: 785, X1: 500 | 6 | 150 - 300 |
| W6212 | 1800 | 1200 | X: 550, X1: 360 | X: 845, X1: 560 | 6 | 250 - 350 |
D: Telescopic vertical arm
S: Single vertical arm
